COS package
Center wavelength
638-1550 nm
Output power
1-25 W
Operating current
1-25A
Operating voltage
1-2V
Threshold current
0.1--1A
Size
5700*4500 μm
Slow axis Divergence
8-15 degrees
Fast axis Divergence
25-35 degrees
Product Description

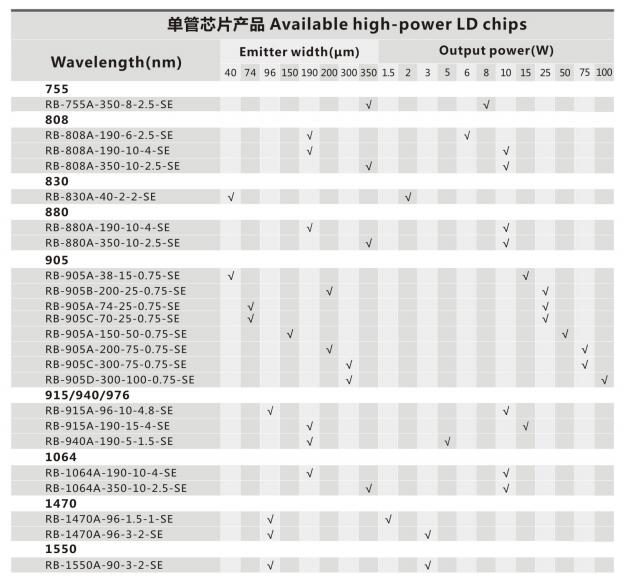

Shenzhen Raybow Optoelectronics Co., Ltd. can provide COS package for all chips between 638nm and 1550nm (see figure below).
Using gold tin welding, with high reliability, high output stability, high efficiency, high cost performance characteristics, widely used in the market. The production process is inspected and aged to ensure the reliability, stability and long life of the product. The contact resistance between the device and the heat sink is less than 1CM2K/W. If the contact resistance exceeds the normal power range, the service life of the device will be shortened. Do not use or store the device in the presence of dew and dust.
To provide customers with high quality, cost-effective products is the goal of the company.
